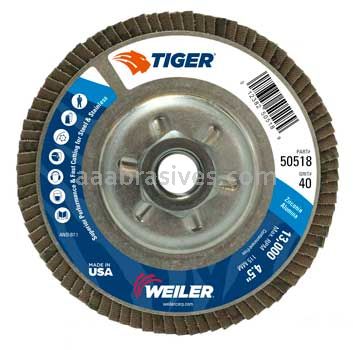

Weiler 50518 4-1/2" 40Z 5/8"-11 A.H. Tiger Disc Abrasive Flap Disc Angled Alum. Backing - 012382505189
Weiler 50518 4-1/2" Tiger Disc Abrasive Flap Disc Conical Type 29 Aluminum Backing 40 Grit Zirc 5/8"-11 UNC Nut
Tiger Aluminum Back 4.5 inch conical flap discs are the benchmark for the pipeline industry, providing rigid support for maximum aggression when grinding steel and stainless steel.
$11.98 Per Piece
- Buy More & Save More
- Sold in packages of 10 pieces
- Buy 1 for $119.75 per package ($11.98 per piece)
- Save 10% – Buy 2+ for $107.78 per package ($10.78 per piece)
- Bulk discount reflected in cart.
Description
Weiler 50518 4-1/2" Tiger Disc Abrasive Flap Disc Conical Type 29 Aluminum Backing 40 Grit Zirc 5/8"-11 UNC Nut
Tiger Aluminum Back 4.5 inch conical flap discs are the benchmark for the pipeline industry, providing rigid support for maximum aggression when grinding steel and stainless steel. These wheels are ideal for removing heavy pitting and resists rolling the pipe bevel ends prior to welding. The aluminum backing also prevents the disc from catching on the bevel when grinding. The type 29 conical disc shape maximizes surface contact when grinding between 15 degrees and 35 degrees for aggressive stock removal on flat surfaces while the 40 grit abrasive grain is best for edge beveling, chamfering, weld grinding, and blending with a right angle grinder. This disc offers a metal 5/8-11 nut that allows for quick changeovers and prevents the disc from sticking to the spindle.
- Aluminum backing provides rigid support for maximum aggression and is recyclable.
- Self-sharpening zirconia alumina (ZA) grains hold up under high temperatures and extreme pressure.
- Contaminant-free (contains less than 0.1% Fe, S, Cl).
- 5/8-11 metal nut allows for quick spin-on, spin-off changeover and eliminates cross-threading or sticking to spindle due to heat build-up.
- Best on carbon steel, structural steel, stainless steel, and cast iron.
Tech Specs
| AA Item# | W50518 |
|---|---|
| Manufacturer: | Weiler Brush |
| Weiler Brush Part# | 50518 |
Weiler 50518 - 4-1/2" Tiger Disc Abrasive Flap Disc - Type 29
Flap Disc Part No: 50518
Flap Disc Diameter: 4-1/2"
Flap Disc Arbor Hole: 5/8"-11 Nut
Flap Disc Grit size: 40 Grit Zirconium
Flap Disc Max RPM: 13,000
Flap Disc Backing: Aluminum
Recommended working angle for Weiler Tiger Flap Disc Angled Type 29 is 15°- 35°.
