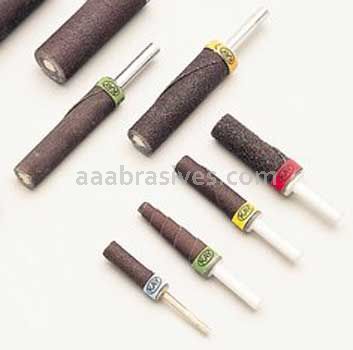

Standard Abrasives Zirconia R8 Taper Precision Cartridge Roll 726033 1/2" x 1-3/4" x 1/4" 80 Grit
Standard Abrasives Precision Cartridge Roll 726033
1/2 x 1-3/4 x 1/4 80 Grit Zirconia R8 Taper Precision Cartridge Roll
All rolls include a 1/4" drive stem.
For industrial/occupational use only. Not for consumer sale or use.
$3.61 Per Piece
- Buy More & Save More
- Sold in packages of 250 pieces
- Buy 1 for $903.05 per package ($3.61 per piece)
- Save 5% – Buy 2+ for $857.90 per package ($3.43 per piece)
- Bulk discount reflected in cart.
Description
Standard Abrasives Zirconia R8 Taper Precision Cartridge Roll 726033 1/2" x 1-3/4" x 1/4" 80
The Standard Abrasives Zirconia Precision Cartridge Roll Model R is ideal for high-speed grinding and deburring on irregular contours and hard-to-reach areas on all metals. The drive stem is solidly affixed to the rear of the roll, and the solid inner core is bonded with the inner layers for greater stability, a smoother application and longer life than conventional cartridge rolls.
Recommended Applications Choose a Standard Abrasives Zirconia Precision Cartridge Roll Model R (formerly a Kay Roll) for smoother running when grinding or deburring applications on hard-to-reach areas of the workpiece. Its small size and shape easily pass over and into irregular contours and enable it to reach into holes and diameters of machined parts. It is ideal for getting into grooves, slots, threads or channels, punched or drilled holes, and contoured surfaces such as car parts.
The secure bond of the roll to the drive stem eliminates loosening and vibration, making our Precision Cartridge Roll especially beneficial when high tolerance and precision grinding are required. The multiple layers provide self-trimming capability during use, exposing new abrasive cutting points throughout the life of the roll.
Heavy-duty zirconia alumina is well-suited for coarse stock removal on all metals, including stainless steel. Combining an aggressive cut with durability makes it a great solution for edge breaking and removal of machine tool marks or flash.
Running a Cartridge Roll on a High-Speed Tool The Model R cartridge roll has a rear mounted 1/4" stem making the entire roll usable for increased productivity and reduced downtime. This stem attaches to a rotary tool such as a die grinder or drill for smooth, controlled high-speed grinding, and negates the need for a separate mandrel attachment.
Cartridge rolls are either straight or tapered. Straight rolls are cylindrical and effective at getting into curves on stamped or rounded parts. Tapered rolls are cone shaped and allow better reach into punched or drilled holes.
Durable Zirconia Alumina for Coarse Applications Zirconia Alumina fractures frequently under heavy pressure to continually produce fresh sharp points and delivers a faster cut-rate than aluminum oxide. A man-made mineral, it is well-suited for coarse grits, heavy stock removal and high pressure grinding.
Benefits of a Multi-Layer Design Seemingly small, these cartridge rolls conquer big challenges when space gets tight. The multi-layer, multi-wear design of a Standard Abrasives Cartridge Roll keeps it cutting sharp and helps it withstand repeated wear. As top layers wear down with use, underlying layers expose fresh mineral, so you get a continuous and consistent cut, part after part. Wrapping multiple layers of the abrasive material around into a roll contributes to its sturdiness and durability.
A resin bond securely anchors mineral to the cloth backing, also enhancing the abrasive's toughness and strength. The closed-coat construction means mineral grains cover 100 percent of the cloth backing, so that a smoother, more consistent finish is achieved.
Tech Specs
AA Item# | 51115366048 |
---|---|
Manufacturer: | Standard Abrasives |
Standard Abrasives Part# | 726033 |
Standard Abrasives Precision Cartridge Roll 726033 - 1/2 x 1-3/4 x 1/4 80 Grit Zirconia R8 Taper Precision Cartridge Roll
Precision Cartridge Roll Manufacturer - Product Line: Standard Abrasives Taper Precision Cartridge Roll - Zirconia
Standard Part Number - 726033
Standard UPC - 51115366048
Cartridge Roll Size: 1/2x1-3/4x1/4
Cartridge Roll Grit: 80 Grit
Cartridge Roll Grain: Zirconia
Zirconia Precision Cartridge Rolls are cool running on stainless for extended stock removal and are very durable. "C" model has an affixed stem that protrudes only about 5/8" into the core and used on larger tools. "R" model has a rear mounted stem, making the entire roll usable, increasing productivity and reducing down time.
