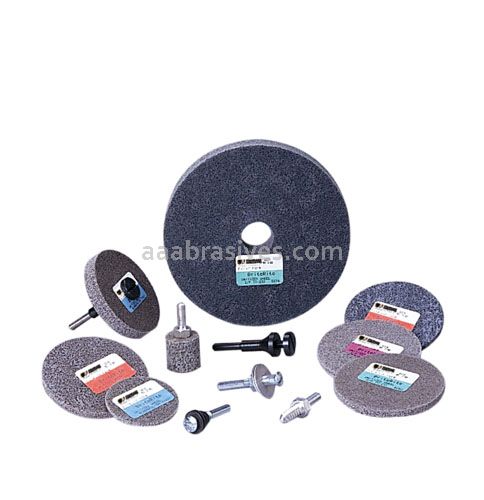

Standard Abrasives S/C Unitized Wheel 890098 532 6" x 1/4" x 3/4" (Made to Order)

Standard Abrasives S/C Unitized Wheel 890098 532 6" x 1/4" x 3/4"

Wheels in Standard Abrasives Silicon Carbide Unitized Wheel 500 Series have a soft, conformable density, making them a good match for light-pressure blending, finishing and polishing on flat or contoured parts. When strict tolerances are required, these non-woven wheels offer operators the finesse needed to deliver precise results.

Soft Density Silicon Carbide Wheel Polishes with Precise Results Among Standard Abrasives Unitized Wheels, the 500 Series provides the softest density, and is available in medium (MED) and fine (FIN) grade silicon carbide (S/C). The combination of soft density and sharp-cutting S/C mineral makes these wheels a good match for applications where a fine finish is more important than cut, such as polishing fillet areas on jet blades and soft metals prior to the coating process. Due to their conformability, these wheels are great for projects with strict tolerances, because they respond to surface irregularities. After prolonged use, the wheel may be dressed to maintain its shape.

Our 500 Series S/C Wheels come in two options. Type 532 is an excellent choice for finishing applications. We designed the Type 524 wheel to better suit light-weight blending applications by constructing it with a higher density of MED grade S/C grain throughout the web material, resulting in a slightly more aggressive product.

Compatible with a Variety of Tools Unitized wheels are typically used on a right angle grinder. A benefit of unitized wheels is that they are bi-directional and can be mounted on a tool or pedestal grinder without regard to the direction of the spindle rotation. This means the Standard Abrasives Unitized Wheel can be used with a variety of tools, and regardless of which way the workpiece is fed through the machine, the wheel will be able to respond, giving operators more flexibility. The stiffness of the unitized construction enables operators to use thinner wheels to access awkward angles with grinding tools.

Series 500 wheels comes in a range of diameters from 1-12" and require a unitized wheel mandrel (sold separately) for attachment to the tool. Quick change wheels are also available (sold separately).

Unitized wheels are created by starting with layers of open web material that combines non-woven fiber strands and abrasive mineral with a tough resin bond. These layers of web are then cured and compressed together. By fusing layers of open web, the abrasive gains more toughness and durability, so it can withstand repeated wear.

Ultimately, the wheel's durability is what makes it such a good match for edges. Regardless of the diameter or thickness of the wheel, it maintains its structural integrity to remain a stiff and long-lasting abrasive. Additionally, as the layers wear, the wheel can be dressed to maintain its shape.

Load-Resistant Construction Boosts Life and Performance Standard Abrasives Unitized Wheels are load-resistant to keep you cutting with fresh mineral. The gaps in the open web allow unwanted swarf to escape. Consequently, less debris clogs the abrasive, so the mineral can stay fresh, keep cutting sharp and deliver a consistent cut over the life of the product. As the fibers break down and fresh mineral is exposed, it reduces the likelihood of dull or blunt mineral smearing the surface, contributing to cleaner surfaces and less re-work. Furthermore, manual fatigue that may result from applying heavy pressure to a dull abrasive is reduced.

The Many Benefits of Standard Abrasives Non-Woven Products Standard Abrasives Unitized Wheels offer many benefits for heavy-duty jobs. For all the aforementioned reasons, Standard Abrasives Unitized Wheels invigorate deburring, cleaning, blending and finishing applications by helping operators reduce finishing steps, minimize costs and achieve greater throughput.
