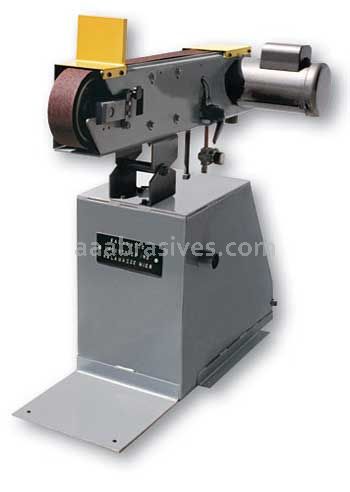

Kalamazoo KS390V 3x90 Sander with Vacuum

Kalamazoo KS390V 3X90 Belt Sander with Vacuum

With a 3HP motor, the KS390V 3 x 90 belt grinder with vacuum is made for fast and cool metalworking production. The grinder head tilts for metal grinding efficiency and material adaptability. Other grinder features include a belt guard and a hinged access door with quick-release locks on the grinder’s side for fast belt changes. Made in the USA!

• 2 HP- 1PH 230V (only) and or 3 HP 3 PH 230V or 460V motor (specify at time of order).
• 1PH amps: 115V 23 amps and 230V 11.5 amps
• 3PH amps: 208V 7.9 amps, 230V 7.2 amps and 460V 3.6 amps
• 24-1/2″ long steel reversible and replaceable platen.
• Direct drive.
• Replaceable contact wheel specifications: 8″ OD x 3″ serrated 70 duro with sealed ball bearings.
• On/off switch.
• Belt size: 3″ x 90″.  All belt types can be used.
• Spring belt tension.
• Quick release belt tension release lever.
• Easy belt tracking.
• Material stop.
• Removable steel platen guard.
• Adjustable steel work table.
• Adjustable belt grinder head.
• Hinged door on grinder head for quick belt and change.
• Multi-position horizontal through vertical.
• Steel base with built-in vacuum system.
• Replaceable filter.
• Machine shipping dimensions: L 48″ x W 57″ x H 52″

DESIGNED TO THE FOLLOWING

• Bevel
• Deburr
• Squaring up ends
• Rounding corners
• Flatwork
• Contouring
• Heavy metalworking
• Aggressive grinding
• Sharpening
• Production grinding
