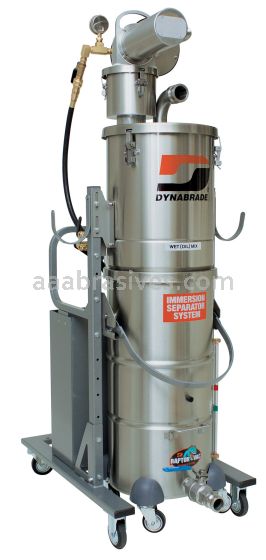

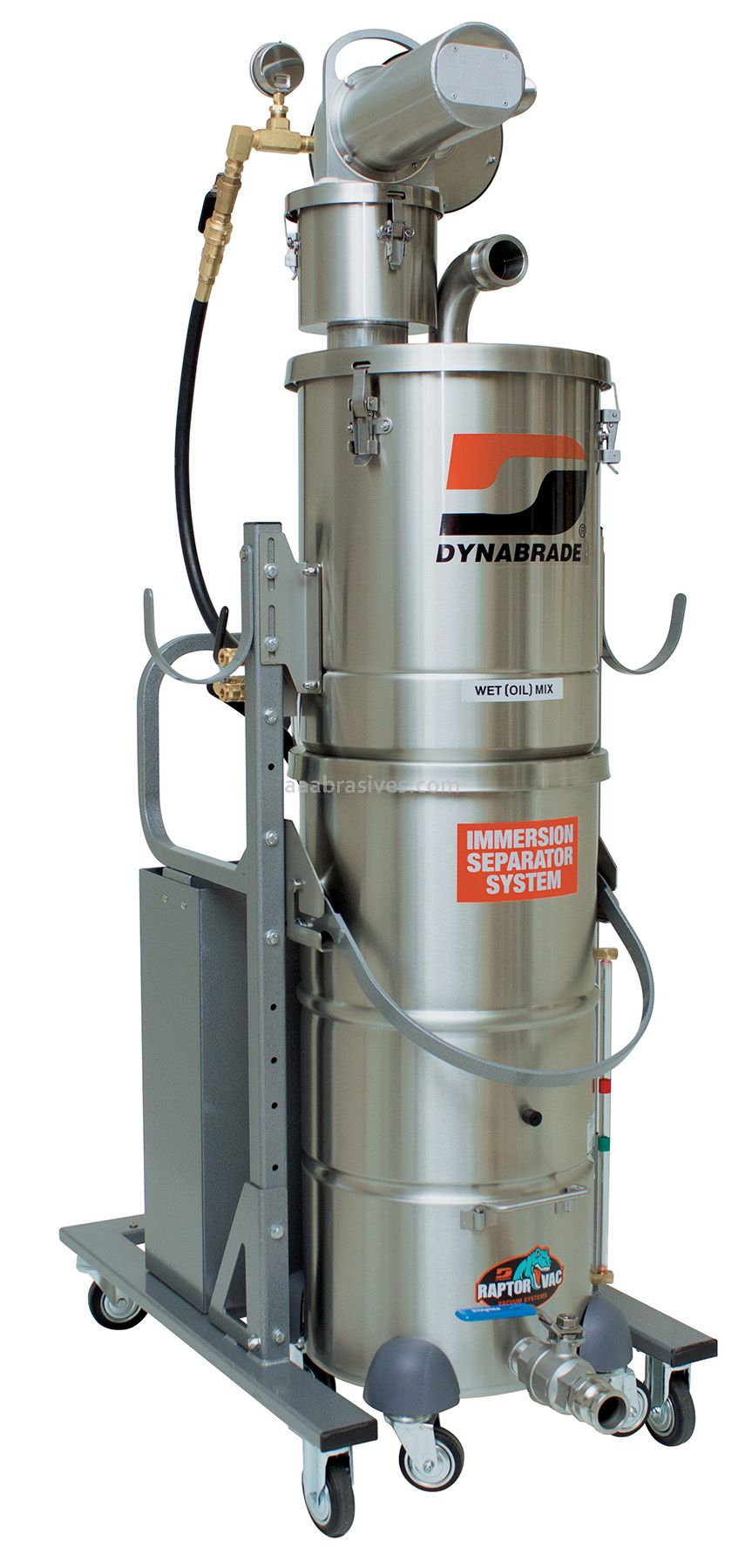

Dynabrade Raptor Vac 61463 Pneumatic Portable Vacuum System
Dynabrade Vacuum Systems are made in the USA.
Oversized item - Requires truck delivery. A representative will contact you after you place your order with best shipping methods and shipping charges. Your order will be finalized once you approve the shipping charges.
$11258.10 Per Piece
Description
Dynabrade Raptor Vac 61463 Pneumatic Portable Vacuum System
22 lbs. (10 kg) into 7.9 Gal. (30 L), Division I, Immersion Separator, N. America
- Pneumatic Portable Vacuum for use on metallic surfaces such as aluminum, magnesium, titanium, commercial alloys. Collects maximum of 22 lbs. (10 kg) of dust. Legally certified as explosion-proof and dust ignition-proof. Utilized for the recovery of metallic, conductive and explosive dusts, into a liquid immersion bath such as water, paraffin oil or mineral oil. Renders hazardous dust inert. Recovery capacity of 1.3 gallons (5 liters) of dust into 7.9 gallons (30 liters) of neutralizing liquid. Includes HEPA H14 Filter with 99.995% efficiency on 0.3 micron. Filter is located downstream of the motor.
- Stainless steel recovery tank (SAE 304). Easy one-click detaching and connecting of tank. Unit is static-dissipating (kit included) and conductive. Aerosol leak tested for quality assurance. Equipped with easy-glide cart and tool basket. Dynabrade recommends the use of Mineral Oil with viscosity of 10.5 cSt. 96608 Conductive Cleaning Kit available separately.
Certifications: Designed For Use In:
Class I, Division I, Groups A, B, C, D T6
Class II, Division I, Groups E, F and G
Hazardous Locations as defined in the National Electric Code (NFPA 70)
Tech Specs
AA Item# | D61463 |
---|---|
Manufacturer: | Dynabrade |
Dynabrade Part# | 61463 |
Dynabrade Raptor Vac 61463 Pneumatic Portable Vacuum with Division 1 Immersion Separator
22 lbs. (10 kg) into 7.9 Gal. (30 L), Division I, Immersion Separator, N. America,
Included:
- Two 20' (6 m) Conductive Coaxial Hoses with Integrated Air Lines
- Y-Connector
- Two Composite Couplers
- Two Vacuum Hose Swivel Adapters
- 3/4" x 25' (19 mm x 7.6 m) Conductive Air Line Supply
