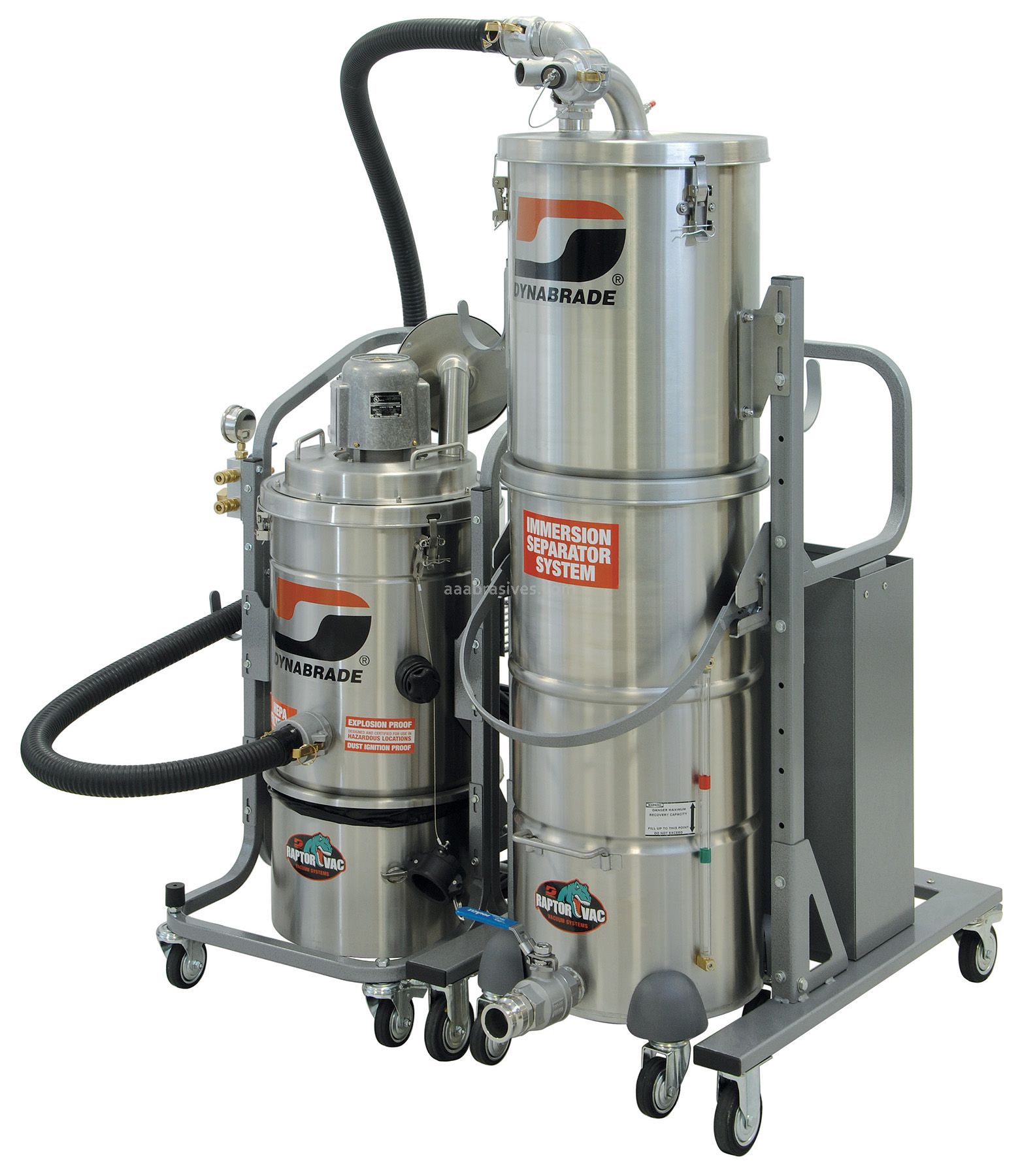

Dynabrade Raptor Vac 61461 Electric Portable Vacuum System

Dynabrade Raptor Vac 61461 Electric Portable Vacuum System

22 lbs. (10 kg) into 7.9 Gal, 20 A, 120 V 50/60 Hz, Division I, Immersion Separator, N. America

• Electric Portable Vacuum for Use on metallic surfaces such as aluminum, magnesium, titanium, commercial alloys. Collects maximum of 22 lbs. (10 kg) of dust. Legally certified as explosion-proof and dust ignition-proof. Utilized for the recovery of metallic, conductive and explosive dusts, into a liquid immersion bath such as water, paraffin oil or mineral oil. Renders hazardous dusts inert. Recovery capacity of 22 lbs (10 kg) of dust into 7.9 gallons (30 liters) of neutralizing liquid. Includes HEPA H14 Filter with 99.995% efficiency on 0.3 micron. Filter is located downstream of the motor.
• For safe recovery of combustible-conductive dusts. Renders hazardous dusts inert using mineral oil as neutralizing liquid.Stainless steel recovery tank (SAE 304). Easy one-click detaching and connecting of tank. Unit is static-dissipating and conductive (Includes 96608 Conductive Cleaning Kit). Aerosol leak tested for quality assurance. Equipped with easy-glide cart and tool basket. Dynabrade recommends the use of mineral oil with viscosity of 10.5 cSt. Connect two tools simultaneously.

Certifications: Designed For Use In:

Class I, Division I, Group D T3C

Class II, Division I, Groups E, F and G

Hazardous Locations as defined in the National Electric Code (NFPA 70)
