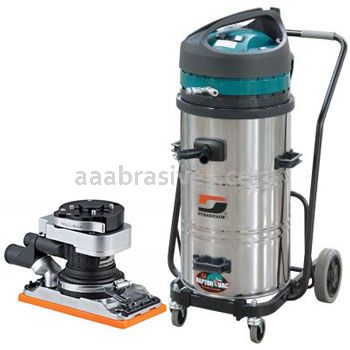

Dynabrade 57814BKV 3-2/3 x 7 Central-Vac 3/32 Orbit Dynabug® Robotic Kit W/ Raptor Vac
Dynabrade 57814BKV 3-2/3 x 7 Dynabug® Random Orbital Sander Tool Kit W/ Raptor Vac
.24 hp Central-Vacuum, 10,000 RPM, 3/32 Orbit, Rear Exhaust
Tool Kit With Vacuum Includes:
- Tool Kit (Millibar tool changer, end effector and solenoid)
- Raptor Vac Electric Portable Vacuum Model 64121 with a 20” air-line/Vac hose.
$5189.00 Per Piece
Description
Dynabrade Dynabug® Robotic Tool Kit Sander 57814BKV W/ Raptor Vac
Central-Vacuum | 3/32” Orbit | .24 hp | 16 SCFM | 10,000 RPM | Rear Exhaust
Sander comes with Dynabrade Disc Pad 57855
Dynabrade has joined with Universal Robots as a Universal Robots+ Partner. As an UR+ Partner, Dynabrade tools are adapted to and part of the approved list of end effectors and accessories to perfectly integrate with UR collaborative robots, ensuring simple set-up, reliable operation, smooth user experience, and easy programming. The result is fast, smooth, and low-risk integration. Dynabrade robotic tools can be used at all levels of production to help increase productivity, reduce injury, and provide consistency of finish. Compatible with Universal Robots: UR5 Robot and UR10 Robot.
Features and Benefits
- Robotic Ready Tool.
- Has 1" outside diameter vacuum port for easy central vacuum hose connection.
- 2,400 strokes per minute at 90 PSIG (6.2 Bar).
- 3/8" (10 mm) stroke length.
Tech Specs
| AA Item# | D57814BKV |
|---|---|
| Manufacturer: | Dynabrade |
| Dynabrade Part# | 57814BKV |
Dynabrade Robotic Sander 57814BKV
Pad Dia.: 3-2/3 x 7 (93 mm x 178 mm)
Orbit Dia.: 3/32” (2.5 mm)
Vacuum Type: Central Vacuum
Motor hp: .24 hp (179 W)
Motor RPM: 10,000 RPM
Max Air Flow: 16 SCFM (453 LPM)
Air Inlet Thread: 1/4" NPT
Hose I.D. : 1/4" (6 mm)
Air Pressure: 90 PSIG (6.2 Bar)
Exhaust Type: Rear
