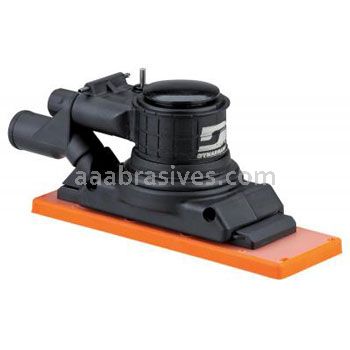

Dynabrade 57404B 2-3/4 x 8 Central-Vac 3/8 Stroke Dynaline® Sander
Dynabrade 57404B 2-3/4 x 8 Dynaline® Sander
.3 hp Central-Vacuum, 2,000 SPM, 3/8 Stroke, Rear Exhaust
Dynabrade robotic tools can be used at all levels of production to help increase productivity, reduce injury, and provide consistency of finish.
$993.00 Per Piece
Description
Dynabrade Dynaline® Robotic Tool Sander 57404B
Central-Vacuum | 3/8” Stroke Length | .3 hp | 18 SCFM | 2,000 SPM | Rear Exhaust
Sander comes with Dynabrade Disc Pad 57455
Dynabrade has joined with Universal Robots as a Universal Robots+ Partner. As an UR+ Partner, Dynabrade tools are adapted to and part of the approved list of end effectors and accessories to perfectly integrate with UR collaborative robots, ensuring simple set-up, reliable operation, smooth user experience, and easy programming. The result is fast, smooth, and low-risk integration. Dynabrade robotic tools can be used at all levels of production to help increase productivity, reduce injury, and provide consistency of finish. Compatible with Universal Robots: UR5 Robot and UR10 Robot.
Features and Benefits
- Robotic Ready Tool.
- Has 1" outside diameter vacuum port for easy central vacuum hose connection.
- 2,400 strokes per minute at 90 PSIG (6.2 Bar).
- 3/8" (10 mm) stroke length.
Tech Specs
| AA Item# | D57404B |
|---|---|
| Manufacturer: | Dynabrade |
| Dynabrade Part# | 57404B |
Dynabrade Robotic Sander 57404BKV Tool Kit W/ Vacuum
Pad Dia.: 2-3/4 x 8 (70 mm x 203 mm)
Stroke Length: 3/8” (10 mm)
Vacuum Type: Central Vacuum
Motor hp: .3 hp (224 W)
Tool SPM: 2,000 Stroke Per Minute
Max Air Flow: 18 SCFM (510 LPM)
Air Inlet Thread: 1/4" NPT
Hose I.D. : 1/4" (6 mm)
Air Pressure: 90 PSIG (6.2 Bar)
Exhaust Type: Rear
