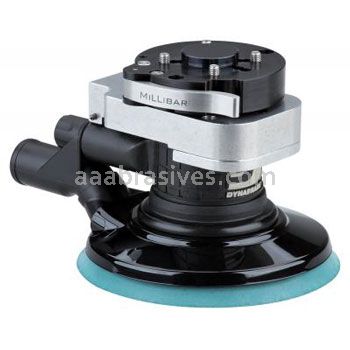

Dynabrade 56863BK 6” Central-Vac 3/32 Orbit Dynorbital Supreme® Robotic Kit
Dynabrade 56863BK 6” Dynorbital Supreme® Random Orbital Sander Tool Kit
.28 hp Central-Vacuum, 12,000 RPM, 3/32 Orbit, Rear Exhaust
Tool Kit Includes: Include Millibar tool changer, end effector and solenoid
$2479.00 Per Piece
Description
Dynabrade Dynorbital Supreme® Robotic Tool Kit 56863BK
Central-Vacuum | 3/32” Orbit | .28 hp | 18 SCFM | 12,000 RPM | Rear Exhaust
Sander comes with Dynabrade Disc Pad 56105
Dynabrade has joined with Universal Robots as a Universal Robots+ Partner. As an UR+ Partner, Dynabrade tools are adapted to and part of the approved list of end effectors and accessories to perfectly integrate with UR collaborative robots, ensuring simple set-up, reliable operation, smooth user experience, and easy programming. The result is fast, smooth, and low-risk integration. Dynabrade robotic tools can be used at all levels of production to help increase productivity, reduce injury, and provide consistency of finish. Compatible with Universal Robots: UR5 Robot and UR10 Robot.
Features and Benefits
- Easy to set-up
- Control of sanding process and improved consistency
- Control of sanding force, pattern, abrasive changes
- Eliminates operator fatigue and potential ergonomic injuries
- High durability of pneumatic motor allows continued operation
- Tools can be quickly changed for multiuse sanding and polishing
- Solenoid accessory allows auto on/off operation of the tool for the best finish possible
- Rotor utilizes five blades and produces more useable power. Composite rotor is stronger and has better lubricating qualities, enabling blades to last longer.
- Composite base has integrated rubber over-mold creating a non-slip feel, as well as insulating from cold
- The air motor is suspended by vibration-absorbing rubber rings (Patent No. 5,319,888) to minimize vibration
- Triple-sealed front double row balancer bearing (Patent No. 4,854,085) is guarded from sanding residue for long life and lower maintenance; easy replacement using 57098 Repair Kit
- Anti-clog design (Patent No. 5,319,888) enhances the vacuum pick-up on central vacuum models
- Dust particles are directed away from the air motor (reducing contamination) following a smoother, easier path of extraction
- Comfort Platform provides additional hand and wrist support, further enhancing operator comfort. Also offers increased protection against cold air exhaust. (NOTE: Comfort Platform is removable.) Order 59330 Comfort Platform (U.S. Patent No. D610,428) separately, to install on existing tool
Tech Specs
| AA Item# | D56863BK |
|---|---|
| Manufacturer: | Dynabrade |
| Dynabrade Part# | 56863BK |
Dynabrade Robotic Sander 56863BK
Pad Dia.: 6” (127 mm)
Orbit Dia.: 3/32” (5 mm)
Vacuum Type: Central Vacuum
Motor hp: .28 hp (209 W)
Motor RPM: 12,000 RPM
Max Air Flow: 18 SCFM (510 LPM)
Air Inlet Thread: 1/4" NPT
Hose I.D. : 1/4" (6 mm)
Air Pressure: 90 PSIG (6.2 Bar)
Exhaust Type: Rear
