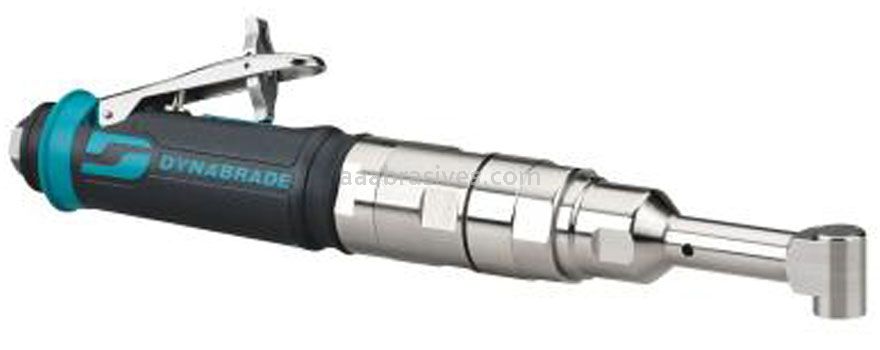

Dynabrade 55585 .4 hp Mini Right Angle Rotatable Drill 2,400 RPM

AA Item#
D55585
Dynabrade Part#
55585
Manufacturer
Dynabrade
Dynabrade 55585 .4 hp Mini Right Angle Rotatable Drill 2,400 RPM
Dynabrade 55585 .4 hp Mini Right Angle Rotatable Drill 2,400 RPM

Image may not be exact product match.

none

Dynabrade 55585 .4 hp Mini Right Angle Rotatable Drill

2,400 RPM, Rear Exhaust, 9/32" - 40 Female Spindle

This item qualifies toward free freight
Free ground shipping on qualified web store order $250.00 and over!
$1,140.00
Per 1 Piece Package
$1140.00 Per Piece
In stock

Enter # of Packages

Description

AA Item#
D55585
Dynabrade Part#
55585
Manufacturer
Dynabrade

Dynabrade Mini Right Angle Drill 55585 With Adjustable Angle Head

.4 hp, 2,400 RPM, Rear Exhaust, 9/32" - 40 Female Spindle

Mini right angle drills are critical tools in the assembly or repair of an aircraft, especially when working in confined areas. Four speeds are available with two work spindle thread options that are ideal for use on a variety of materials.

Design Features and Benefits

  • Rotating drill head, adjusts to 12 positions, (360°) in relation to the safety throttle lever
  • Head rotates in both clockwise and counterclockwise directions.
  • Head can be rotated by pulling the head away from the body, rotating to desired position and releasing to lock back into position.
  • Head Adjustability/Rotation does not require tools and can be done by the operator as needed. Patent pending
  • Accepts 1/4"-28 or 9/32"
  • Compact head design is ideal for drilling and deburring in hard to access locations
  • “Featherable” trigger provide slow starting action and allows for variable speed as needed by the operator
  • Composite body and tactile thermoplastic rubber tool grip provide comfortable control of the tool during use
  • Sealed gear case protects gears and reduces maintenance
  • Lightweight thermal-insulated housing reduces cold air transmission and vibration to the operator
  • Governor-controlled motor maintains speed under load, (4) RPMs to choose from
  • Compact standard rear muffler design and safety-lock lever included

Tech Specs

More Information
AA Item# D55585
Manufacturer: Dynabrade
Dynabrade Part# 55585

Dynabrade 55585 Mini Right Angle Rotatable Drill

Dynabrade Model Number:55585

Tool Spindle Thread: 9/32" - 40 Female

Motor hp: 0.4 hp (298 W)

Motor RPM:2,400 RPM

Max Air Flow: 26 SCFM (736 LPM)

Air Inlet Thread: 1/4" NPT

Hose I.D. : 3/8" (10 mm)

Exhaust Type: Rear

Angle Head Height: 1" (26 mm)

Length: 10.5" (266 mm)
