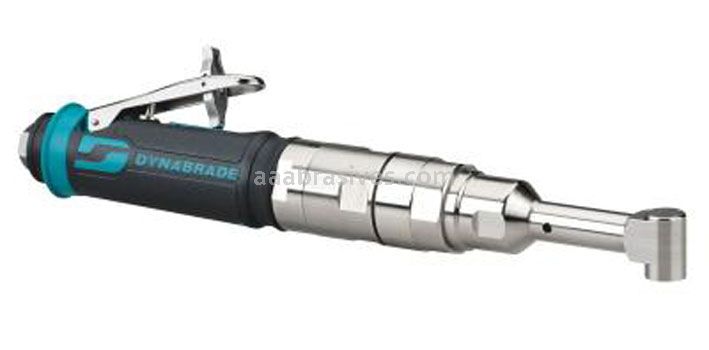

Dynabrade 55580 .4 hp Mini Right Angle Rotatable Drill 900 RPM
Dynabrade 55580 .4 hp Mini Right Angle Rotatable Drill
900 RPM, Rear Exhaust, 1/4”-28 Female Spindle
$1465.40 Per Piece
Description
Dynabrade Mini Right Angle Drill 55580 With Adjustable Angle Head
.4 hp, 900 RPM, Rear Exhaust, 1/4”-28 Tool Thread
Mini right angle drills are critical tools in the assembly or repair of an aircraft, especially when working in confined areas. Four speeds are available with two work spindle thread options that are ideal for use on a variety of materials.
Design Features and Benefits
- Rotating drill head, adjusts to 12 positions, (360°) in relation to the safety throttle lever
- Head rotates in both clockwise and counterclockwise directions.
- Head can be rotated by pulling the head away from the body, rotating to desired position and releasing to lock back into position.
- Head Adjustability/Rotation does not require tools and can be done by the operator as needed. Patent pending
- Accepts 1/4"-28 or 9/32"
- Compact head design is ideal for drilling and deburring in hard to access locations
- “Featherable” trigger provide slow starting action and allows for variable speed as needed by the operator
- Composite body and tactile thermoplastic rubber tool grip provide comfortable control of the tool during use
- Sealed gear case protects gears and reduces maintenance
- Lightweight thermal-insulated housing reduces cold air transmission and vibration to the operator
- Governor-controlled motor maintains speed under load, (4) RPMs to choose from
- Compact standard rear muffler design and safety-lock lever included
Tech Specs
AA Item# | D55580 |
---|---|
Manufacturer: | Dynabrade |
Dynabrade Part# | 55580 |
Dynabrade 55580 Mini Right Angle Rotatable Drill
Dynabrade Model Number:55580
Tool Spindle Thread: 1/4" - 28 Female
Motor hp: 0.4 hp (298 W)
Motor RPM:900 RPM
Max Air Flow: 26 SCFM (736 LPM)
Air Inlet Thread: 1/4" NPT
Hose I.D. : 3/8" (10 mm)
Exhaust Type: Rear
Angle Head Height: 1" (26 mm)
Length: 11.7" (298 mm)
