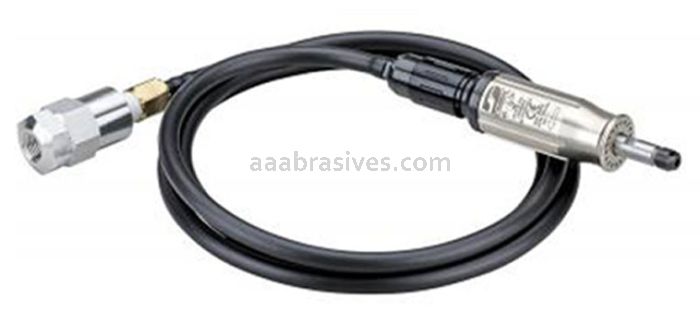

Dynabrade 55500 .1 hp Twin Turbine Straight-Line Pencil Grinder 100,000 RPM
Dynabrade 55500 .1 hp Straight-Line Pencil Grinder
100,000 RPM, Nickel Plated Aluminum Housing, Twin Turbine Air Motor, Front Exhaust, 1/8" Collet
$557.00 Per Piece
Description
Dynabrade Straight-Line Pencil Grinder 55500
.1 hp, 100,000 RPM, Twin Turbine Air Motor, Front Exhaust, 1/8" Collet
The Dynabrade twin turbine pencil grinder is utilized in grinding and deburring applications requiring a high degree of precision. The compact design of the nickel plated housing fits naturally in most operators’ hands and is built to stand up to demanding industrial applications and the aerospace industry.
Design Features and Benefits
- High speed motor provides smooth chatter free fine finish and low run out
- Low vibration and quiet operation minimizes operator fatigue
- Compact size and ergonomic shape can easily be controlled by the operator
- Oil free tool is low maintenance and poses no contamination to the work piece
- Housing made of nickel plated aluminum for high durability
- Two stage turbine motor with twist throttle handle and inline 5 micron air filter
- Top quality ball bearings provide long tool life
Tech Specs
| AA Item# | D55500 |
|---|---|
| Manufacturer: | Dynabrade |
| Dynabrade Part# | 55500 |
Dynabrade 55500 Straight-Line Pencil Grinder
Dynabrade Model Number:55500
Collet Insert Size:1/8"
Motor hp: 0.1 hp (75 W)
Motor RPM:100,000 RPM
Max Air Flow: 6 SCFM (170 LPM)
Air Inlet Thread: 1/4" NPT
Hose I.D. : 1/4" (6 mm)
Exhaust Type: Front
Diameter: 1.1" (28 mm)
Length: 6.5" (165 mm)
