CS Unitec EKF 452 3 Multi-Purpose Beveling Machine R2.5
AA Item#
EKF4523
CS Unitec Part#
EKF 452.3
Manufacturer
CS Unitec
none

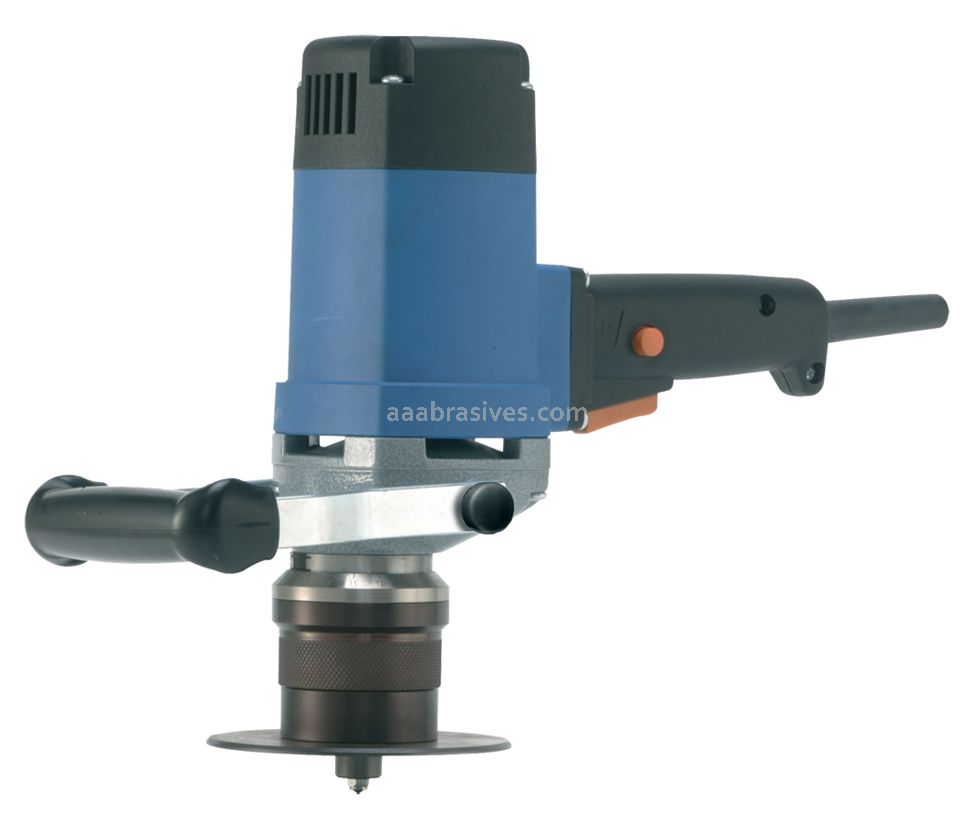

CS Unitec EKF 452.3 Portable Multi-Purpose Beveling Machine R2.5
The EKF multi-purpose beveling machine is designed to bevel 30° or 45° weld seams on steel, stainless, nonferrous metals, brass and plastics.
This item does not qualify towards free freight
$876.71
Per 1 Piece Package
$876.71 Per Piece
$876.71 Per Piece
- Buy More & Save More
- Buy 1 for $876.71
- Save 5% – Buy 2+ for $832.87 each
- Bulk discount reflected in cart.
In stock
Description
AA Item#
EKF4523
CS Unitec Part#
EKF 452.3
Manufacturer
CS Unitec
CS Unitec EKF 452.3 Portable Multi-Purpose Beveling Machine R2.5
The EKF multi-purpose beveling machine is designed to bevel 30° or 45° weld seams on steel, stainless, nonferrous metals, brass and plastics. It can also be used to deburr and chamfer; straighten edges, internal and external radii; and countersink holes from 7/8" diameter.
- Fine adjustment feature for slight chamfers when deburring for the preparation of weld seam
- Four milling heads – 30°, 45°, 0.063" (1.6mm) and 0.098" (2.5mm) radius inserts available
- Ideal for the following applications:
- Moldmaking straighten edges, internal and external radii and countersink holes from 7/8" dia.
- Boiler and process plant construction prepare weld seams on heat exchangers
- Mechanical engineering deburr machine parts, chamfer edges to protect against paint peeling and create visible edges
- Sheet metal deburr cut edges
Tech Specs
| AA Item# | EKF4523 |
|---|---|
| Manufacturer: | CS Unitec |
| CS Unitec Part# | EKF 452.3 |
CS Unitec EKF 452.3 Beveling Machine
Beveling Edge Angle (mm): .098" (2.5mm)
Max. Bevel Width Inch: 1/4"
Motor Power: 13.5 A/100V (220 V/50 Hz also available)
Cutting Speed (sfpm): 3000
Cutting Inserts: 3
Length Inch: 12-1/2"
Width Inch: 5-1/2"
Height Inch: 11-5/8"
