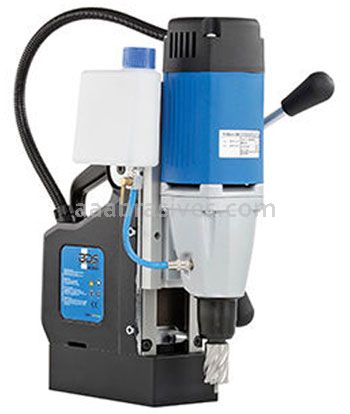

CS Unitec MABasic 200 Single-Speed Portable Magnetic Drill
CS Unitec MABasic 200 Portable Magnetic Drill
Drill up to 1-3/8” Diameter. Stroke 6-1/3".
The CS Unitec MABasic 200 uses annular cutters up to 1-3/8" diameter. Lightweight robust and economical portable magnetic core drilling machine and ideal for drilling structural steel and virtually any metal.
$830.83 Per Piece
Description
CS Unitec Portable Magnetic Drill MABasic 200 - Drill up to 1-3/8” Diameter
The CS Unitec MABasic 200 is a lightweight robust and economical portable magnetic core drilling machine. Designed for continuous operation, CS Unitec's portable magnetic drills are ideal for drilling structural steel and virtually any metal. Use with Annular Cutters up to 1-3/8” Diameter.
CS Unitec MABasic 200 Includes
- 3/4" Weldon shank
- 1/2" Geared chuck
- Carrying case
- Operating manual
- Warranty certificate
- Lubrication bottle
- Safety strap
- Carabin hook
- Allen keys
- Pilot pin
Tech Specs
| AA Item# | MABasic 200 |
|---|---|
| Manufacturer: | CS Unitec |
| CS Unitec Part# | MABasic 200 |
CS Unitec MABasic 200 Drill Specifications
Model: MABasic 200
Motor Power: 8.2 Amp/110 Volt
Stroke: 6-1/3" (3-1/3" with geared chuck)
Hole Capacity: 1-3/8" dia.
Twist Drill Capacity: 1/2" dia.
Speed: 450 RPM
Magnet Base Size: 6-5/8" L x 3-1/3" W
Dimensions: 12-1/4" H x 9" L x 6-1/2" W
Magnetic Force (1"Plate): 3080 lbs.
Arbor Bore: 3/4" Weldon Shank
Lubrication: Oil Bottle Included
Equipped with Electronic Safety Shutoff Sensor
Parts
Parts for your CS Unitec MABasic 200 Portable Magnetic Drill
6-Series HSS Unibroach Annular Cutters
