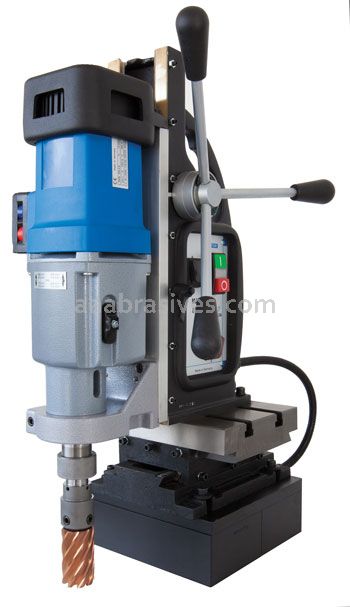

CS Unitec MAB 825 KTS 4-Speed Portable Magnetic Drill
CS Unitec MAB 825 KTS Portable Magnetic Drill
Uses Annular Cutters up to 3-1/8" Dia, Tap up to 1-3/16" Dia., Stroke 10".
The CS Unitec MAB 825 KTS features multi-axis positioning, allowing the drill to be adjusted up to 4-3/4” forward/ backward and up to 4-3/8” left/right after magnet is adhered to surface.
Oversized item - Requires truck delivery. A representative will contact you after you place your order with best shipping methods and shipping charges. Your order will be finalized once you approve the shipping charges.
$6620.19 Per Piece
Description
CS Unitec Portable Magnetic Drill MAB 825 KTS - Drill up to 3-1/8" Dia, Tap up to 1-3/16" Dia.
- 16 Amp double-insulated motor
- 4-speed oilbath gearbox for applications requiring high power
- Designed for continuous use
- Infinitely variable torque control and full-wave control electronics
- Ideal for a wide variety of drilling, boring and slotting applications
- Includes servo-assisted drilling feature to help maintain feed pressure during operation
- Multi-axis positioning
- Uses annular cutters up to 3-1/8" dia.
- 10" stroke
- Integrated cutting oil reservoir
- Automatic internal lubrication
- Simple, ergonomic arrangement of controls for one-handed operation
- Emergency-off function
CS Unitec MAB 825 KTS Drill Includes:
- Auto Lubrication
- Steel carrying case (Steel case intended mainly for shipping purposes; damage may occur in transit)
- Operating manual
- Warranty certificate
- Safety Chain
- Safety strap
- Carabin hook
- Allen keys
- Optional 3/4" geared chuck available
Tech Specs
| AA Item# | MAB825KTS |
|---|---|
| Manufacturer: | CS Unitec |
| CS Unitec Part# | MAB 825 KTS |
CS Unitec MAB 825 KTS Specifications
Model: MAB 825 KTS
Motor Power: 16 Amp/110 Volt
Hole Capacity: 3-1/8" dia.
Twist Drill Capacity: 1-1/4" dia.
Tapping Capacity: 1-3/16" dia.
4 Speeds: 40-110, 65-175, 140-360, 220-600 RPM
Magnet Base Size: 8-11/16" L x 8-11/16" W
Dimensions: 19-3/4" H x 13" L x 14-1/2" W
Magnetic Force (1"Plate): 6600 lbs.
Arbor Bore: 3/4" and 1-1/4”, standard
Spindle: MT3
Automatic Lubrication: Included
Parts
Parts for your CS Unitec MAB 825 KTS Portable Magnetic Drill
6-Series HSS Unibroach Annular Cutters
