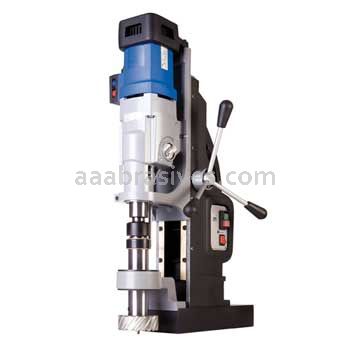

CS Unitec MAB 1300 V Automatic-Feed Portable Magnetic Drill
CS Unitec MAB 1300 V Portable Magnetic Drill
The CS Unitec MAB 1300 V Largest capacity in the industry - Holes up to 6" dia. Tapping up to 1-5/8" dia., Twist drill up to 1-3/4" dia.
$9541.71 Per Piece
Description
CS Unitec MAB 1300 V Portable Magnetic Drill
Product Features
- Largest capacity mag drill in the industry - 6" dia.
- Powerful and reliable
- Automatic feed for production applications
- Designed for continuous use
- Integrated cutting oil reservoir
- Automatic internal lubrication
- SafeMag™: Green/Red LED magnetic force indicator for safe operation
- CoolMag™: Magnet overheating protection
- Internal cable routing
- Simple, ergonomic arrangement of controls for one-handed operation
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment
Tech Specs
| AA Item# | MAB1300V |
|---|---|
| Manufacturer: | CS Unitec |
| CS Unitec Part# | MAB 1300 V |
CS Unitec MAB 1300 V Specifications
Model: MAB 1300 V
Motor Power: 20 Amp / 110 Volt
Weight: 112 lbs.
Stroke: 12" without retainer
Hole Capacity: 6" dia. - Annular cutter drilling capacity 6” diameter up to 1” thick in carbon steel - Use TCT cutters for large diameter.
Twist Drill Capacity: 1-3/4" dia.
Tapping Capacity: 1-5/8" dia.
Speeds: 30-80, 50-120, 130-350, 210-550 RPM
Magnet Base Size: 4-3/4" W x 14" H
Dimensions: 34-1/2" H x 19-1/2" L x 10" W
Magnetic Force: (1" plate) 23,600 lbs.
Arbor Bore: 1-1/4" (3/4" adapter included)
Spindle: MT4
Automatic Lubrication: Included
Automatic Feed: Included
Standard Equipment: 1 Automatic-feed magnetic drilling machine, 1 Carrying case on wheels, 1 Arbor adapter to 3/4" Weldon, 1 Safety chain, 1 Hexagon socket screw key SW 6, 1 Drift key MT4, 1 Operating manual, 1 Warranty certificate Standard Equipment also includes auto lubrication, safety strap, carbin hook and allen keys.
