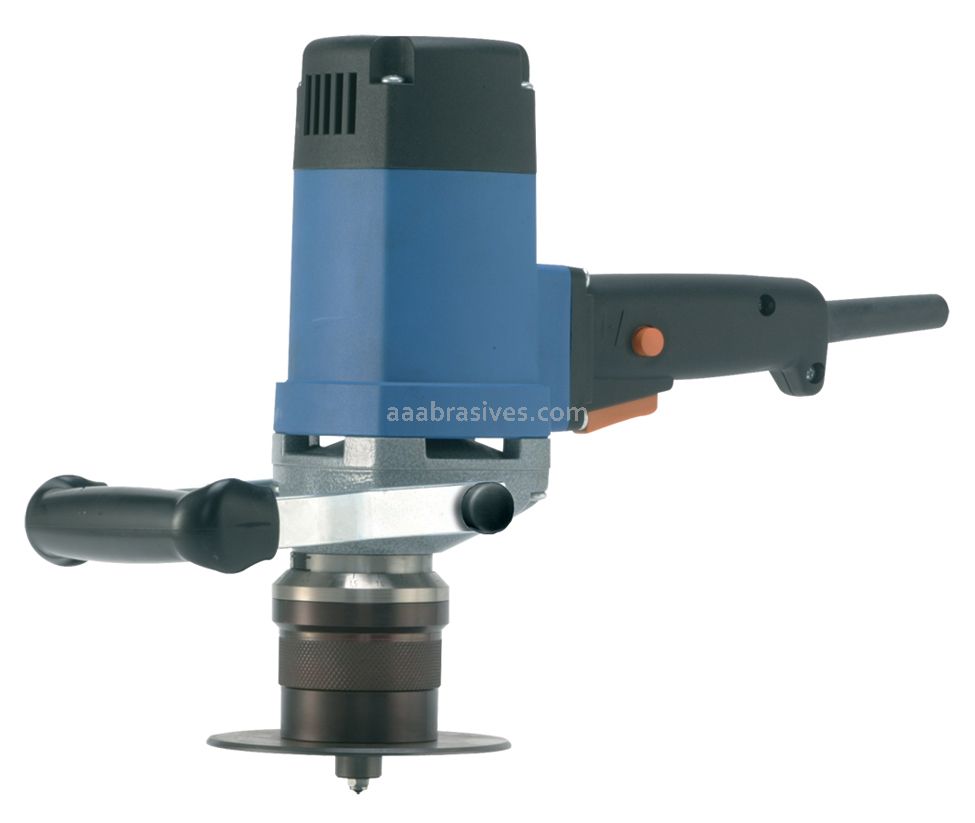

CS Unitec EKF 300.3 Multi-Purpose Beveling Machine 30 Degrees
CS Unitec EKF 300.3 Portable Multi-Purpose Beveling Machine 30 Degrees
The EKF multi-purpose beveling machine is designed to bevel 30° or 45° weld seams on steel, stainless, nonferrous metals, brass and plastics. It can also be used to deburr and chamfer; straighten edges, internal and external radii; and countersink holes from 7/8" diameter.
$876.71 Per Piece
- Buy More & Save More
- Buy 1 for $876.71
- Save 5% – Buy 2+ for $832.87 each
- Bulk discount reflected in cart.
Description
CS Unitec EKF 300.3 Portable Multi-Purpose Beveling Machine 30 Degrees
The EKF multi-purpose beveling machine is designed to bevel 30° or 45° weld seams on steel, stainless, nonferrous metals, brass and plastics. It can also be used to deburr and chamfer; straighten edges, internal and external radii; and countersink holes from 7/8" diameter.
- Fine adjustment feature for slight chamfers when deburring for the preparation of weld seam
- Four milling heads – 30°, 45° 0.063" (1.6mm) and 0.098" (2.5mm) radius inserts available
- Ideal for the following applications: Moldmaking (straighten edges, internal and external radii and countersink holes from 7/8" dia.) Boiler and process plant construction (prepare weld seams on heat exchangers); Mechanical engineering (deburr machine parts, chamfer edges to protect against paint peeling and create visible edges) Sheet metal (deburr cut edges)
Tech Specs
| AA Item# | EKF3003 |
|---|---|
| Manufacturer: | CS Unitec |
| CS Unitec Part# | EKF 300.3 |
CS Unitec EKF 300.3 Beveling Machine
Beveling Edge Angle (mm): 30°
Max. Bevel Width Inch: 1/4"
Motor Power: 13.5 A/100V (220 V/50 Hz also available)
Cutting Speed (sfpm): 3000
Cutting Inserts: 3
Length Inch: 12-1/2"
Width Inch: 5-1/2"
Height Inch: 11-5/8"
