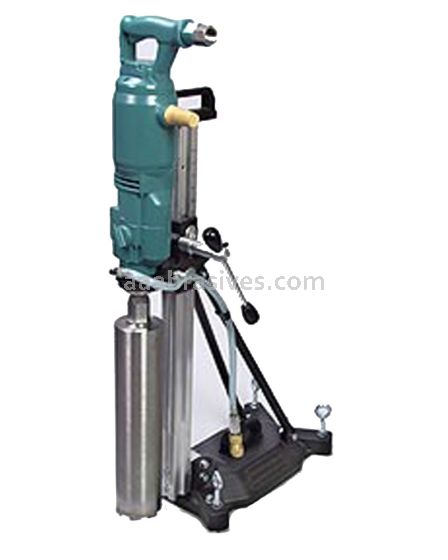

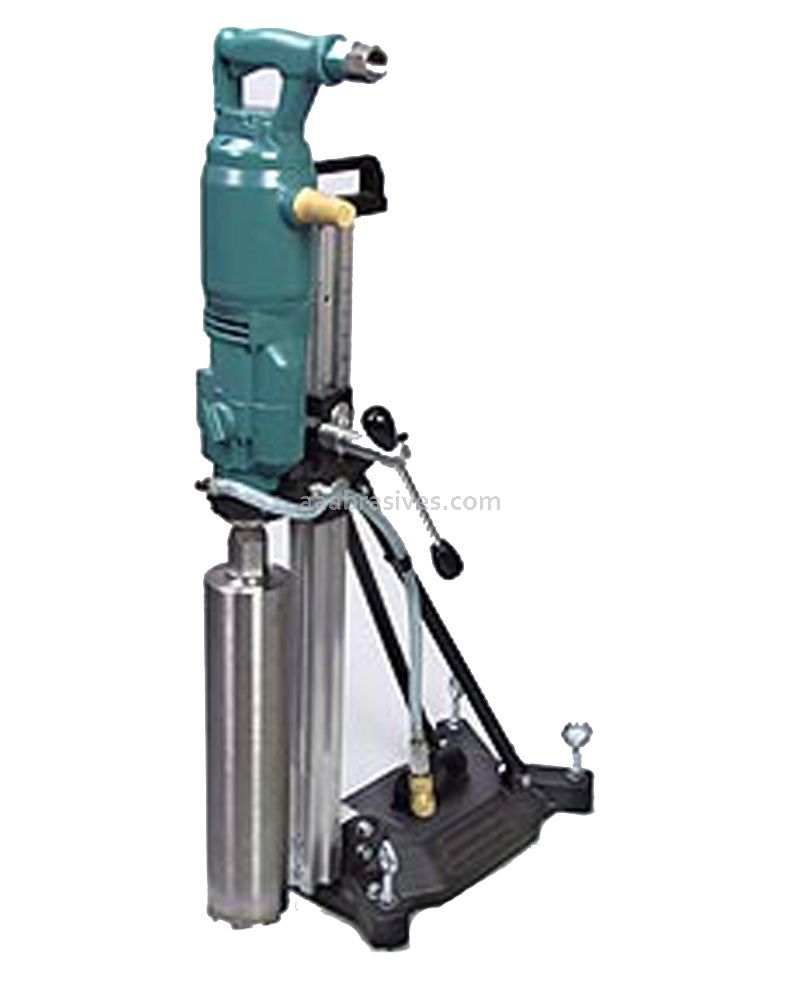

CS Unitec 3.6 HP 6" Hydraulic Core Drill 213170030

CS Unitec 3.6 HP 6" Hydraulic Core Drill 213170030

The CS Unitec 2 1317 0030 Hydraulic Diamond Core Wet Drill, 3.6 HP, 3-Speed is ideal for heavy-duty wet drilling in concrete, reinforced concrete and asphalt. Ideal for professional drilling contractors and underwater applications

This powerful wet diamond core drill is designed for fast, accurate drilling in concrete, reinforced concrete and other masonry materials. Sealed 3-speed gearbox with permanent oil bath lubrication.

The hydraulic motor operates at 2000 PSI oil pressure. The required flow is 6 GPM. Additional flow is automatically bypassed back to the tank up to a maximum input of 13 GPM.

The hydraulic core drill incorporates a safety slip clutch and water swivel. 5/8" x 11 UNC and 1-1/4" x 7 UNC and G 1/2" connecting threads are standard. 1/2" hose diameter with 3/8" FF (HTMA) couplings.

Holes up to 6" diameter mounted in a drill stand, 3 1/4" diameter if used as a hand-held. Mechanical slip clutch design. Load Speeds: 380 / 900 / 1800 RPM

Standard equipment:

• Heat-treated Gears
• Safety Friction Slip Clutch
• 360° Rotatable Handle
• Centering Aid (Part No. 2 1315 6800)
• Metal Carrying Case (Part No. 5 1212 9000)

Stand, vacuum pump and bits are sold separately.
