CS Unitec 2.1 HP 6" Air Core Drill 213330010
AA Item#
213330010
CS Unitec Part#
213330010
Manufacturer
CS Unitec
none
CS Unitec 2.1 HP 6" Air Core Drill 213330010
This item does not qualify towards free freight
$4,298.86
Per 1 Piece Package
$4298.86 Per Piece
$4298.86 Per Piece
In stock
Description
AA Item#
213330010
CS Unitec Part#
213330010
Manufacturer
CS Unitec
CS Unitec 2.1 HP 6" Air Core Drill 213330010

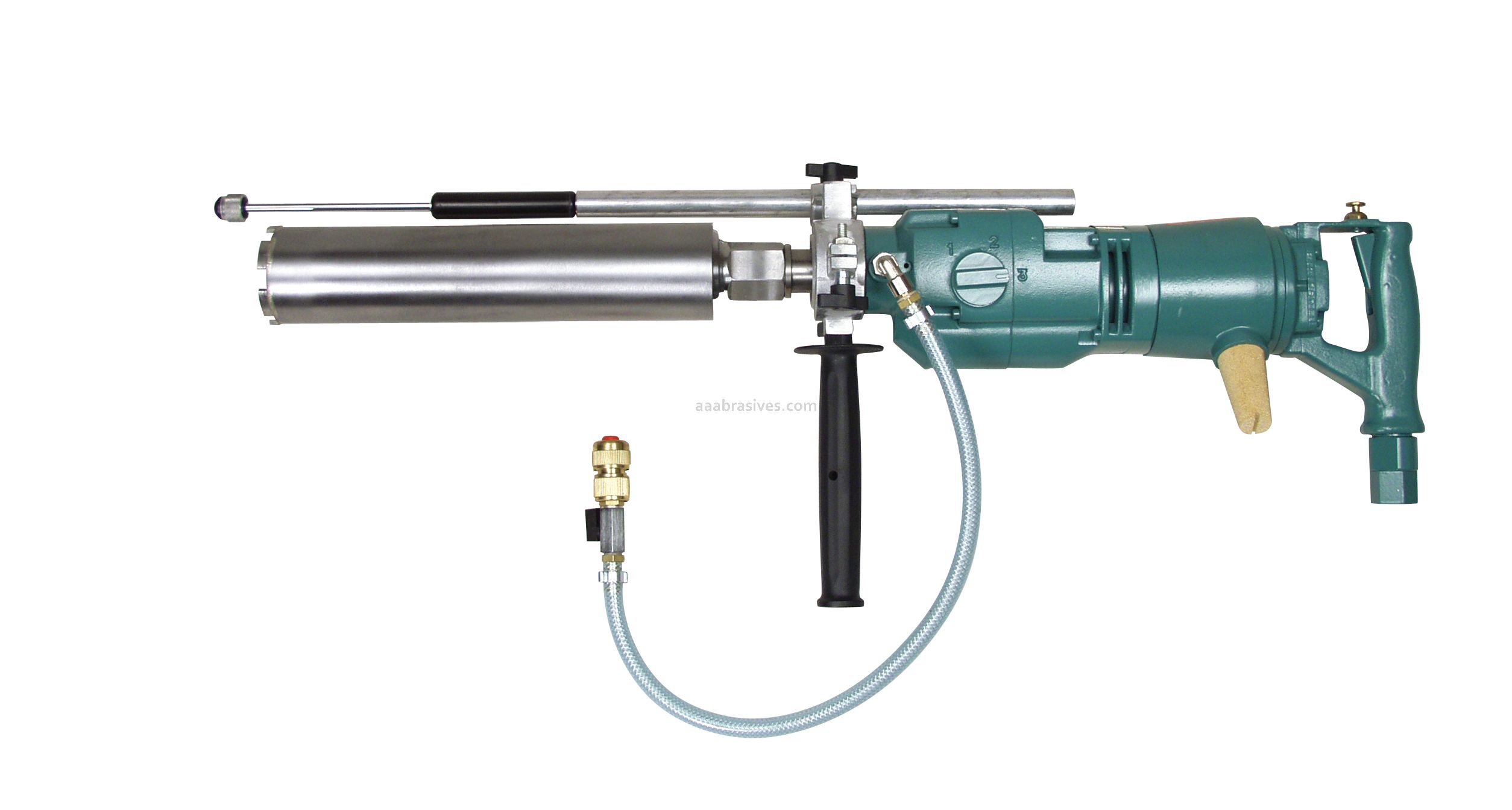

The CS Unitec 2 1333 0010 SA Pneumatic Diamond Core Drill Rig, 2.1 HP, 3-Speed, with Stand is ideal for drilling refractory brick concrete and reinforced concrete, as well as use in underwater environments.
- Holes up to 6" diameter with drill stand, using gear 1. 3" maximum diameter when used as a hand-held device.
- Mechanical Safety Slip Clutch
- 3-Speed Mechanical Gear Box with heat-treated gears
- Built-in Water Swivel
- 1-1/4" x 7 UNC Spindle
- 5/8" x 11 UNC Adapter
- 360° Rotatable Side Handle
- Centering Aid (Part No. 2 1315 6800)
Vacuum pump and bits are sold separately.
Tech Specs
| AA Item# | 213330010 |
|---|---|
| Manufacturer: | CS Unitec |
| CS Unitec Part# | 213330010 |
Model 2 1333 0010 – 2.1 HP (1.6 kW)
3 Speeds (RPM):400, 900, 1600
Air Motor: 2.1 HP (1.6 kW)
Air Consumption: 77 CFM
Air Pressure: 90 PSI
Air Connection: 3/4" NPT
Bit Connection: 1-1/4"x7 UNC, 5/8"x11 UNC, G 1/2"
Weight: 18 lbs.
Parts
PartsPages
Drill & Anchor Stand – 2 1333 0010 SA
Drill, Stand & Vacuum Pump – 2 1333 0010 SV
Call to order special specifications.
